1: Power supply size: 140mm * 150mm * 86mm
2: Power standard: ATX 12V
3: Applicable to CPU range: AMD, Intel
4: PFC type: active PFC
6: Maximum power: 500W
7: Efficiency: 80%
8: Input voltage: 160V-264V

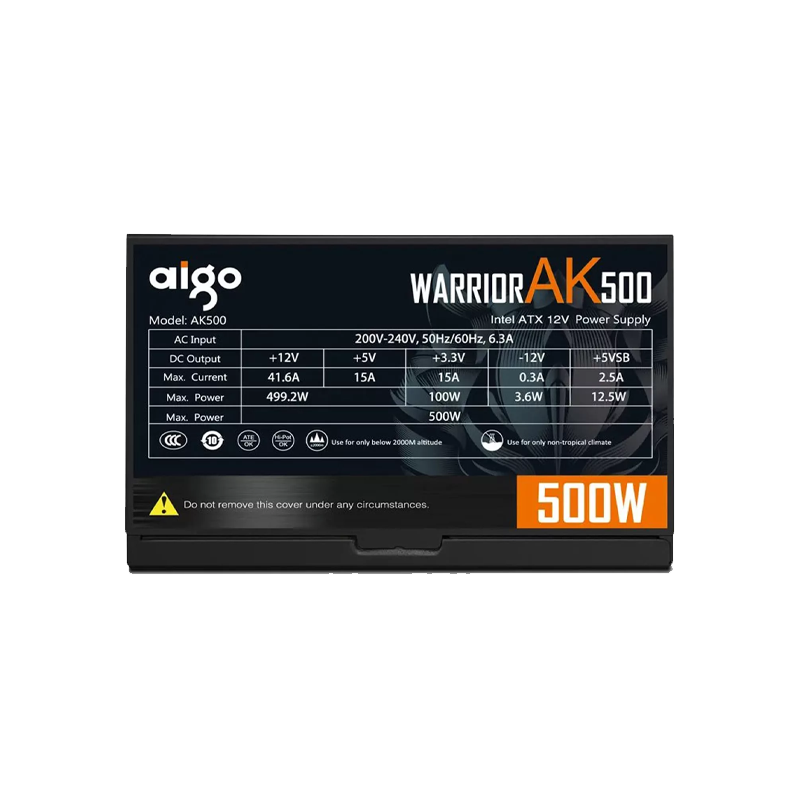

9:+ 3.3V output current 20A
+ 5V output current 15A
+ 12V1 output current 48A
– 12V output current 0.3A
+ 5Vsb output current 2.5A
10: Support wide voltage: Yes
11: Support temperature control PWM: Yes
12: Certification: CB, CCC, FCC, Class, B, CE, ROHS
13: Product weight: 1900g
14: Support power: 20P / 24P motherboard
15: Power Output Design: Multiplex + 12V
16:IDE interface: 2
17: SATA interface: 4
18: CPU interface: P4 + 4
19: Video card interface: (6PIN + 2)* 2
