The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. Read more
UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ROTATABLE BLOCKHEAD
The MAG CORELIQUID E Series, inspired by the passing of time and the shape of solar eclipse, is an innovative product that combines advanced cooling technology with a striking visual design. Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
FULL CPU COVERAGE
By enlarging the contact area between the coolant and the copper base of the water block, the MAG CORELIQUID E Series maximizes heat dissipation from the CPU. The enhanced density of the micro-channel design improves the efficiency of the water cooling system by enlarging the contact surface area.
PUMP COOLING DESIGN
Ensures that the cooled water temperature can be delivered to the desired location of the heat source, effectively reducing the temperature of the heat source.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
The radiator has a 12 pathway designed to help rapidly dissipate heat.
EVAPORATION PROOF TUBING
The multi-layer structure effectively prevents the liquid from evaporating, while the reinforced mesh plastic tube enhances the durability of the exterior mesh.
FAN CONSTRUCTION
The fan's FDB bearing helps reduce noise level while minimizing vibrations.
The fan blades are constructed of low-impurity acrylic for better ARGB lighting presentation.
INTEGRATING WITH THE SYSTEM ENVIRONMENT
With the MSI CENTER software, users can integrate MSI liquid cooling with their motherboard and adjust the speed of the cooling fan and pump through the motherboard.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects.
| Best Seller Ranking | #9 in Water / Liquid Cooling |
|---|
| Brand | MSI |
|---|---|

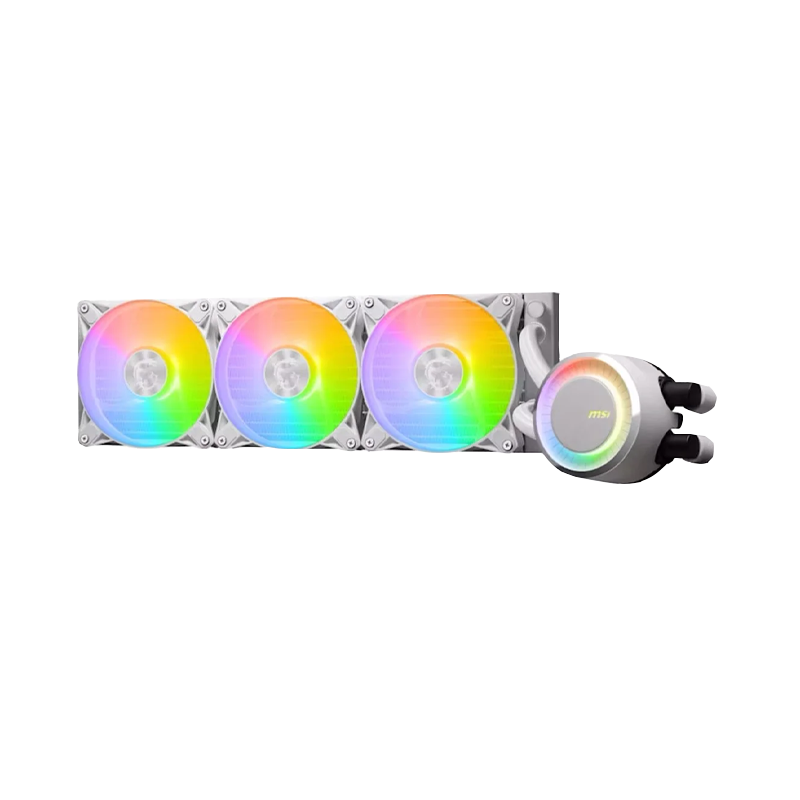

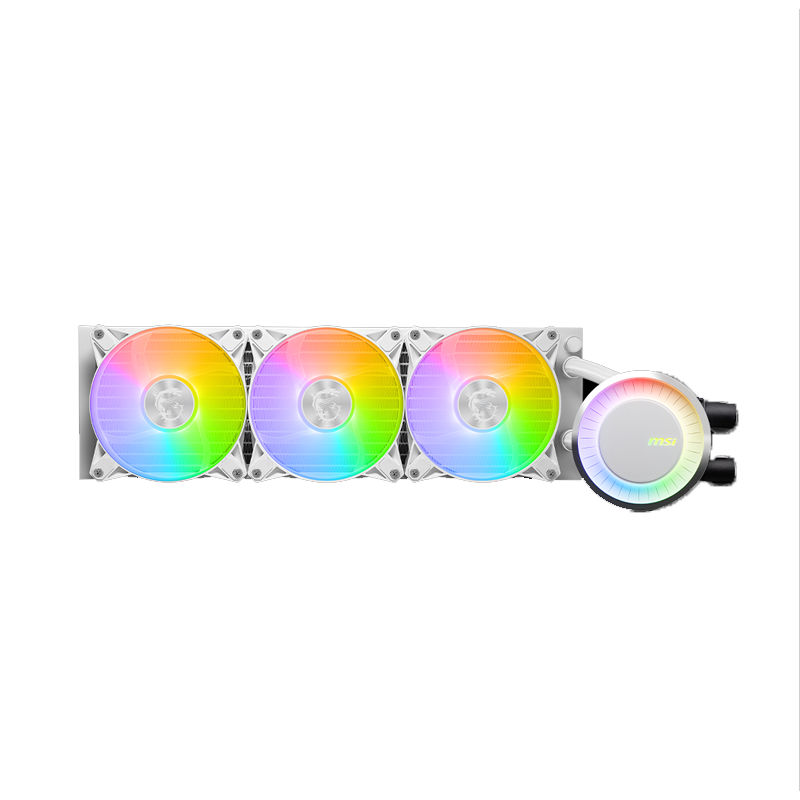

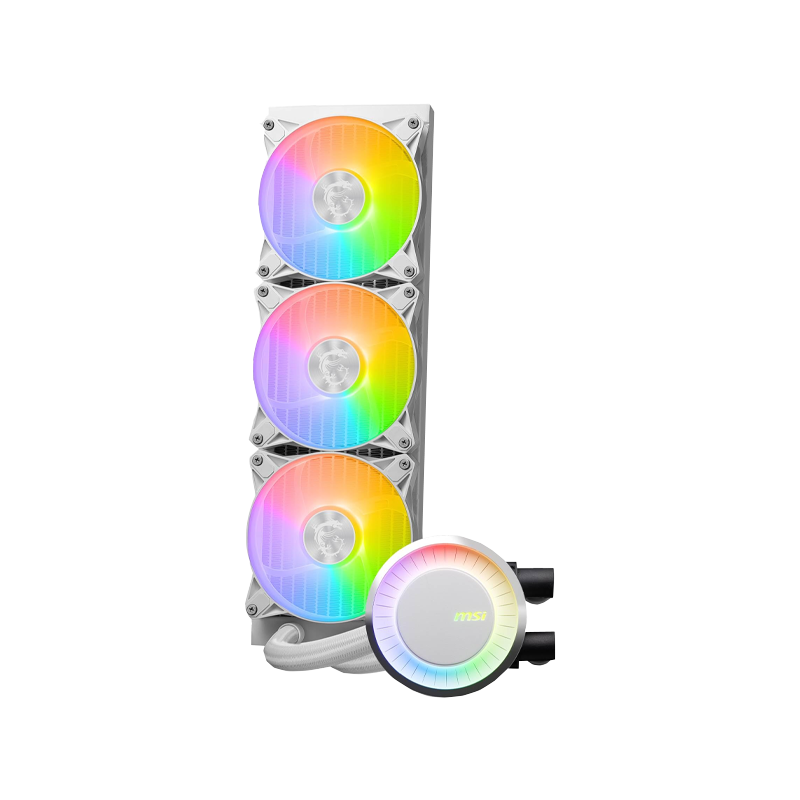

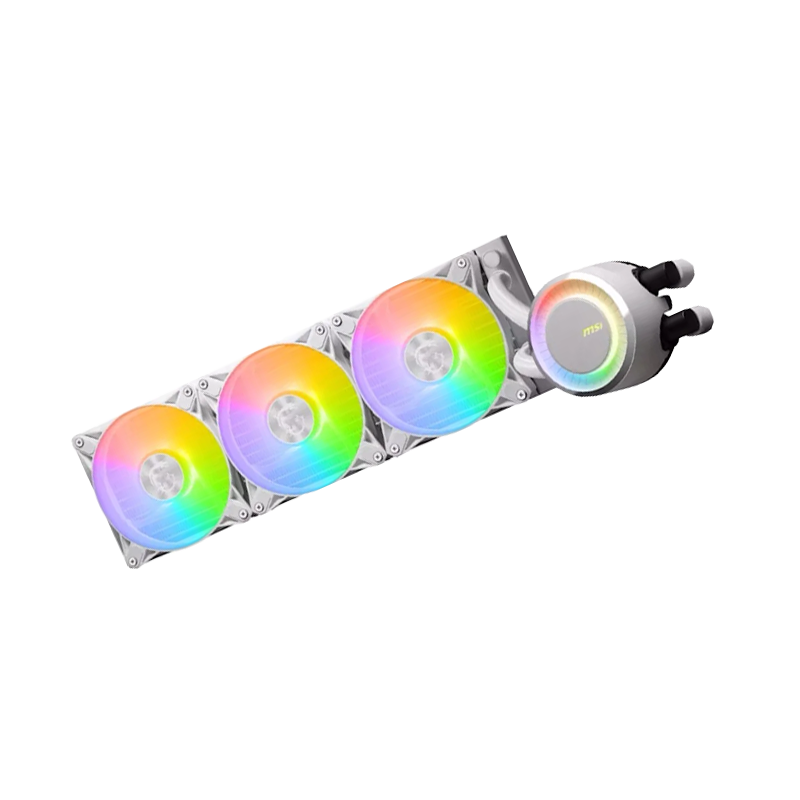

| Model | MAG CORELIQUID E360 |
| Type | Liquid Cooling System |
| Block Compatibility | AMD Socket AM4 / AMD Socket AM5 / AMD Socket sTR4 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 |
|---|---|
| Block Dim. | 41 (+/-0.2) x 47.6 (+/-0.2) mm |
| Block Material | Copper |
| Radiator Size | Radiator Size: 360 mm Radiator Dimensions: 394 x 119.2 x 27mm / 15.51 x 4.69 x 1.06 inches |
|---|---|
| Radiator Material | Aluminum |
| Fan Size | 3 Fan Slots (120 mm) |
|---|---|
| Fan Dim. | 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Fan RPM | 600 +/-250RPM ~ 1800 +/-200RPM |
| Fan Air Flow | 25.5~75.04 CFM |
| Fan Noise | 11.2~32.5 dBA |
| Fan Connector | Pin + Socket |
| Color | Black |
| LED Color | ARGB |
| Tube Dim. | Water Cooling Tube Length: 400mm / 15.75 inches |
|---|---|
| Tube Material | Black Rubber |
| Features | The enlarged copper base surface area helps to achieve ultimate heat exchange with the latest CPU generation Maximize micro channels to dissipate heat efficiently Rotatable water block cap for 270 degree. ARGB fan can change the lighting by MSI center. Enhanced fan performance to dissipate heat quickly. Pump is separating the rooms of cool water and hot water to avoid mixing water temperatures and effectively reduce the heat source. Durable three phase motor of the pump generates minimal vibrations for long lasting operation. Spilt pathway through the radiator rapidly dissipates heat. |
|---|
| Package Contents | 1 to 3 Fan PWM cable x 1 Molex 4-Pin to 4-Pin fan cable x 1 Noise reducer cable x 1 Thermal paste x 1 |
|---|
| Specifications | Descriptions |
|---|---|
| No Specifications | |
