Configurable Port
ASUS ExpertCenter PN64 is wellequipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners and receipt printers.
Padlock Ring for Security
The chassis of ASUS ExpertCenter PN64 can be secured with a standard padlock to prevent access to internal components.
• Model: ASUS ExpertCenter PN64 (Barebone)
• CPU: Intel® Core™ i7-13700H Processor, 35W TDP
• Chipset: Integrated
• Graphics: Integrated - Intel® Iris® Xe Graphics (i7/i5 Processor) *Intel® Iris® Xe Graphics requires 128-bit dual channel memory for optimal performance
• Memory (NOT INCLUDED): 2 x DDR5 SO-DIMM, Max. 32GB x 2(13th Gen CPU) * Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List (QVL) for more details.
• Storage (NOT INCLUDED): 1 x M.2 2280 PCIe Gen4x4, supports 256GB~2TB NVMe™ SSD, 1 x 2.5" SATA 6Gb/s, supports 1TB 7200rpm 7mm HDD * 2.5" HDD bay only supports 7mm height. ** Please check the Qualified Vendors List (QVL) for more details.
• Wireless Data Network: Intel® Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card
• Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card
• Intel® Wi-Fi 6 (Gig+) 2x2 + Bluetooth® 5.2 Wireless Card
• *WiFi 7 and WiFi 6E 6GHz regulatory may vary among countries.
• *Bluetooth v5.2 and later version functions to be supported in Windows 11 or later.
• LAN: 10/100/1000/2500 Mbps, 2.5G Intel® LAN

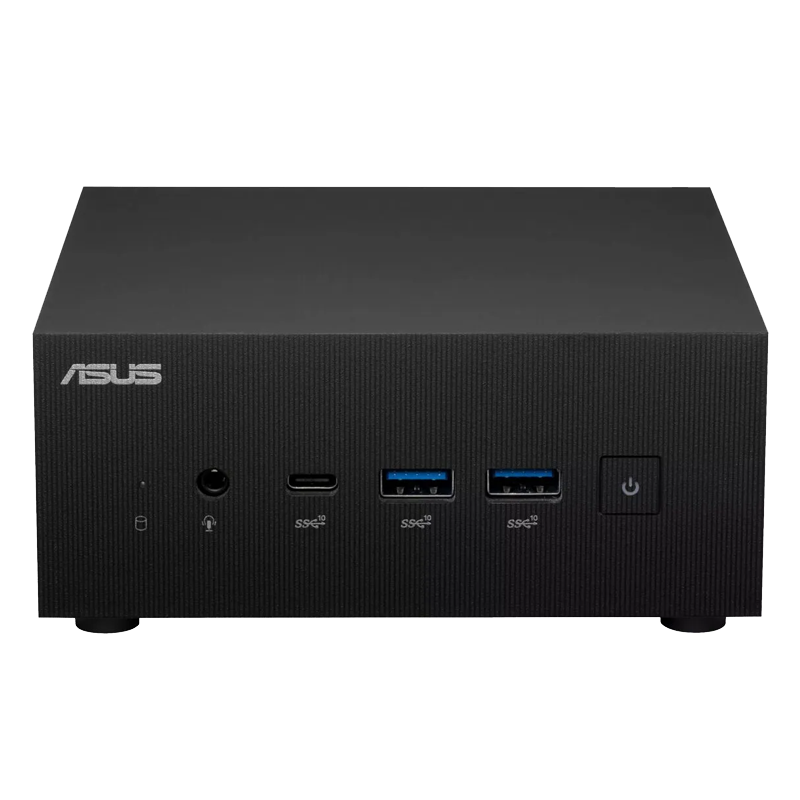

• Front(Side) I/O Ports: 1 x USB 3.2 Gen2 Type-C
• 2 x USB 3.2 Gen2 Type-A
• 1 x Audio Jack
• 1 x Kensington Lock(side)

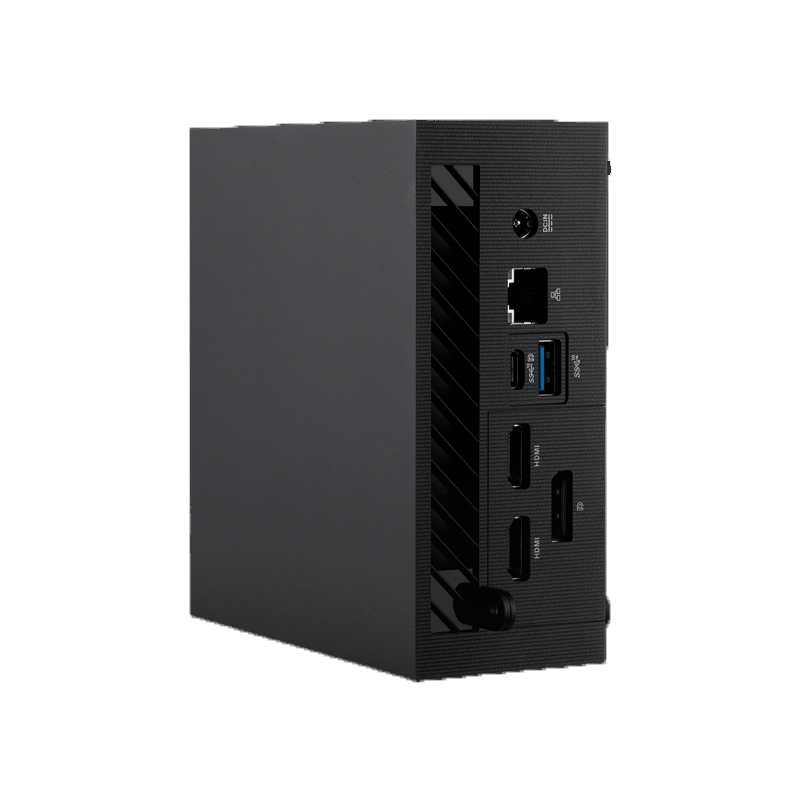

• Back I/O Ports: 1 x USB 3.2 Gen2 Type-C (with DP1.4 output and PD input), 1 x USB 3.2 Gen2 Type-A, 2 x HDMI 2.1 (Up to 4K@60Hz), 1 x Configurable Port, 1 x 2.5G RJ45 LAN, 1 x Padlock ring, 1 x DC-in
• Configurable Port Options: 1 x HDMI 2.1 (Up to 4K@60Hz), 1 x DisplayPort 1.4
• 1 x COM, 1 x VGA, 1 x 2.5G LAN
• Dimensions (W x D x H): 120 x 130 x 58 mm
• Weight: 0.75 kg(barebone)
• Certificates: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
