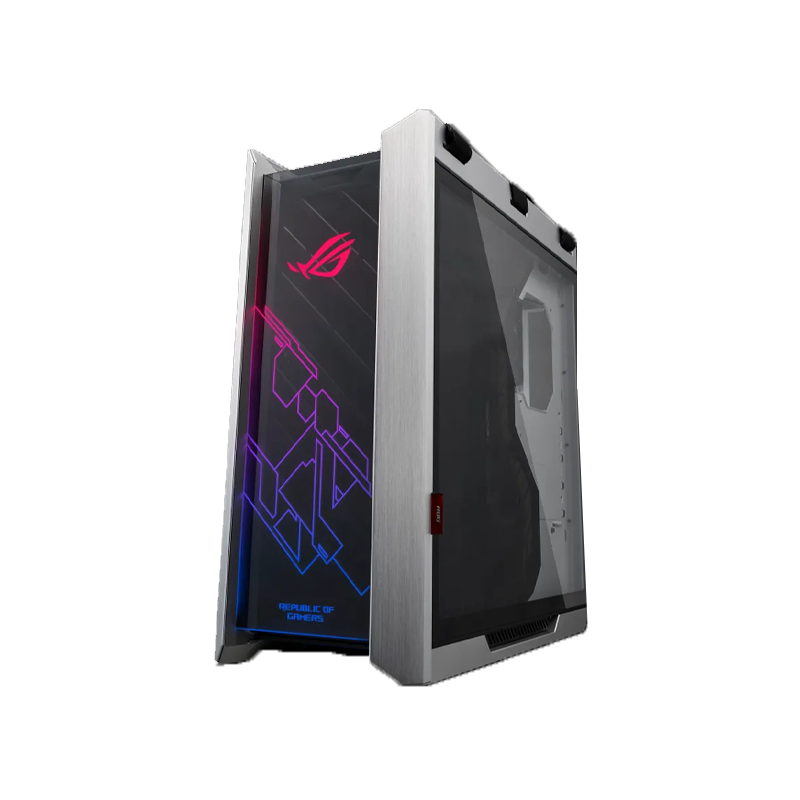

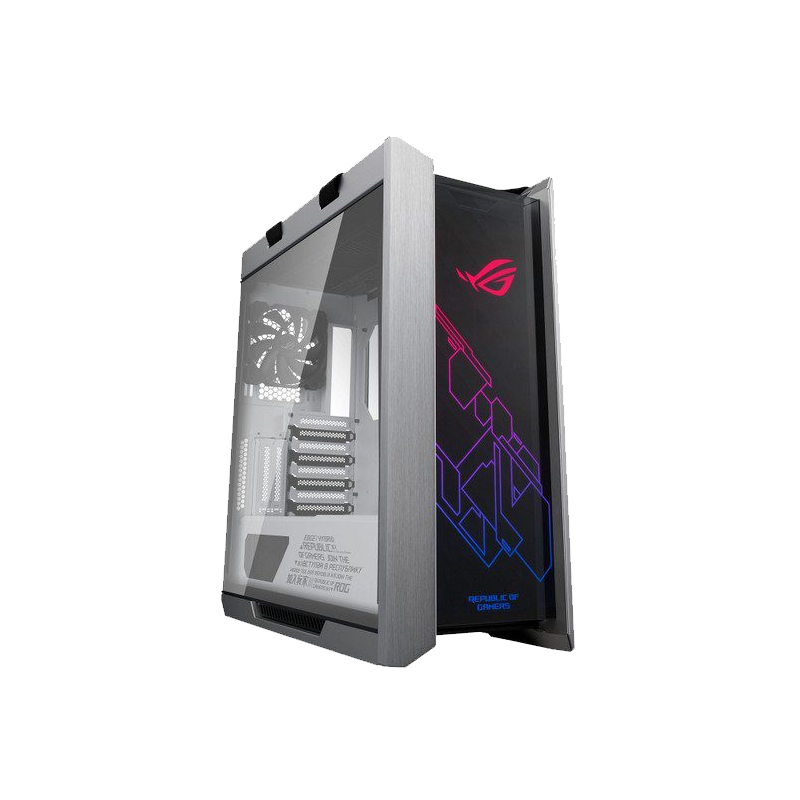

ROG Strix Helios White Edition is a premium mid-tower gaming case with three tempered-glass panels, a silver-white aluminum frame and integrated front-panel RGB lighting. Built-in cable management, including a multifunction cover with GPU braces, keeps the interior sharp and tidy. Read more
Product Details
Premium Design & White Aesthetics

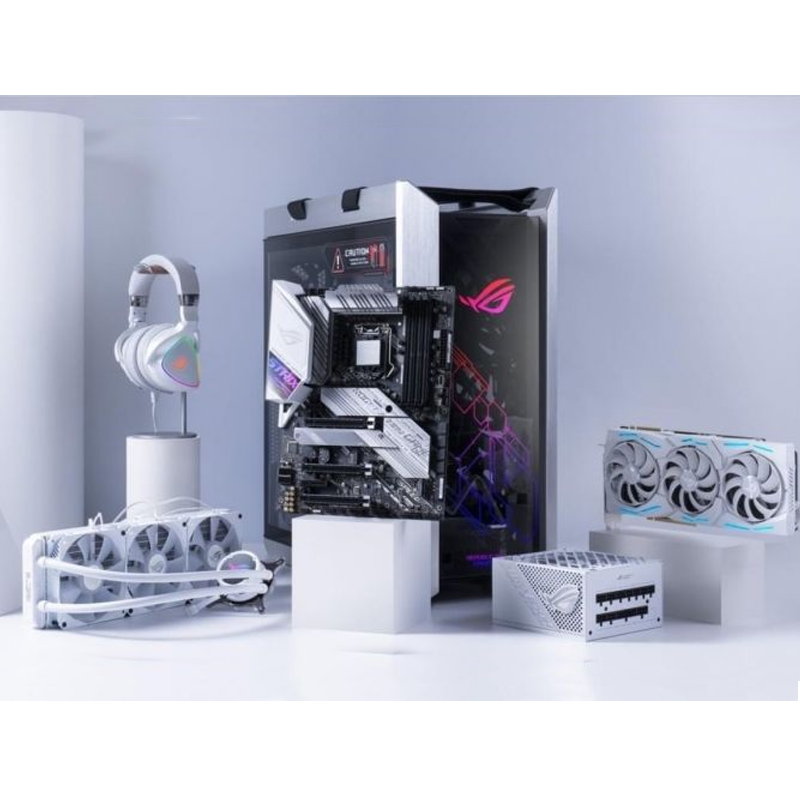

ROG Strix Helios White Edition is made to go with your clean white components for a stunning showcase build. With three smoked tempered-glass panels fitted in a silver-white brushed-aluminum frame, and dynamic RGB lighting integrated into the front of the case, ROG Strix Helios White Edition will make your setup stand out from the pack.

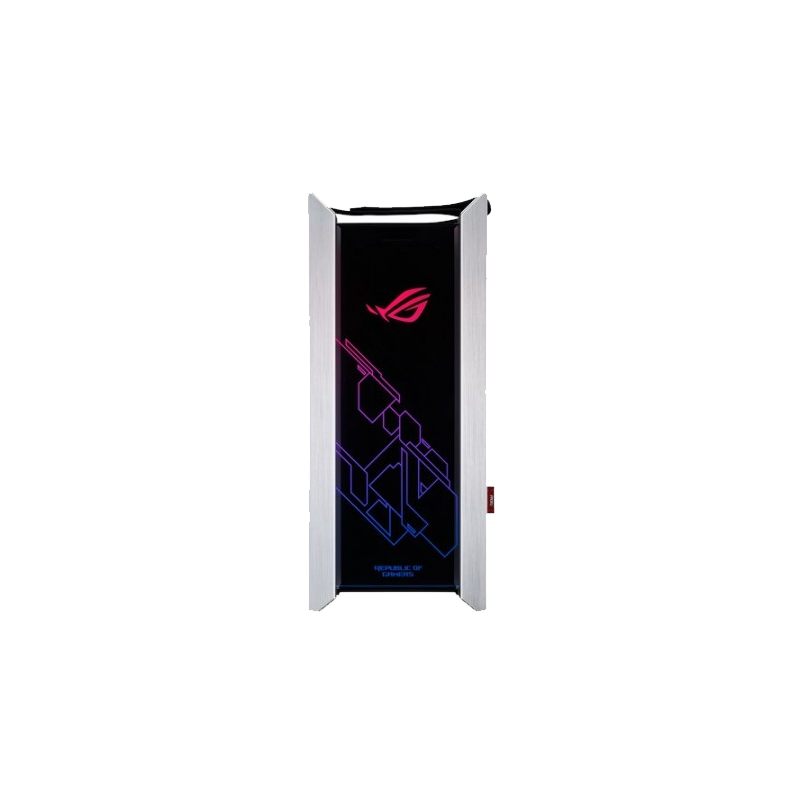

Aura Sync Rgb Lighting
Featuring integrated addressable RGB LEDs in the front panel that can be customized using a dedicated control button or with Aura software, ROG Strix Helios White Edition can cast millions of colors and a range of effects that can be synchronized with a vast ecosystem of components to augment your build.
Unique Multi-Function Covers Design
An adjustable smart multi-function cover to suit both ATX and EATX motherboard. While it helps to hide the cable and holes for a neat presentation, there is also dedicated space to mount the ROG Terminal. There is additional GPU holder that secures the graphics cards in place like a pair of chopstick for the enhanced security of heavy graphics cards during transportation.
Tempered Glass Latch Open Door Design
Featuring 3x 4mm-thick smoked tempered-glass on both sides and the front.
Toolless assembly with quick release latch button together with bottom mount bracket design to assure safety.
Graphics Card Placement Options
Horizontal mounted up to three graphics cards.The additional stand up PCIe slots and the exclusive GPU bracket enables you to show off up to two graphics cards in the vertical position.
* Riser cables sold separately
Cooling Compatibility
Fan:
Top: 3x120 / 2x140mm
Front: 3x120 or 140mm
Rear: 1x120 or 140mm
Radiator:
Top: 120 / 140 / 240 / 280 / 360mm
Front: 120 / 140 / 240 / 280 / 360 / 420mm
Rear: 120 / 140mm

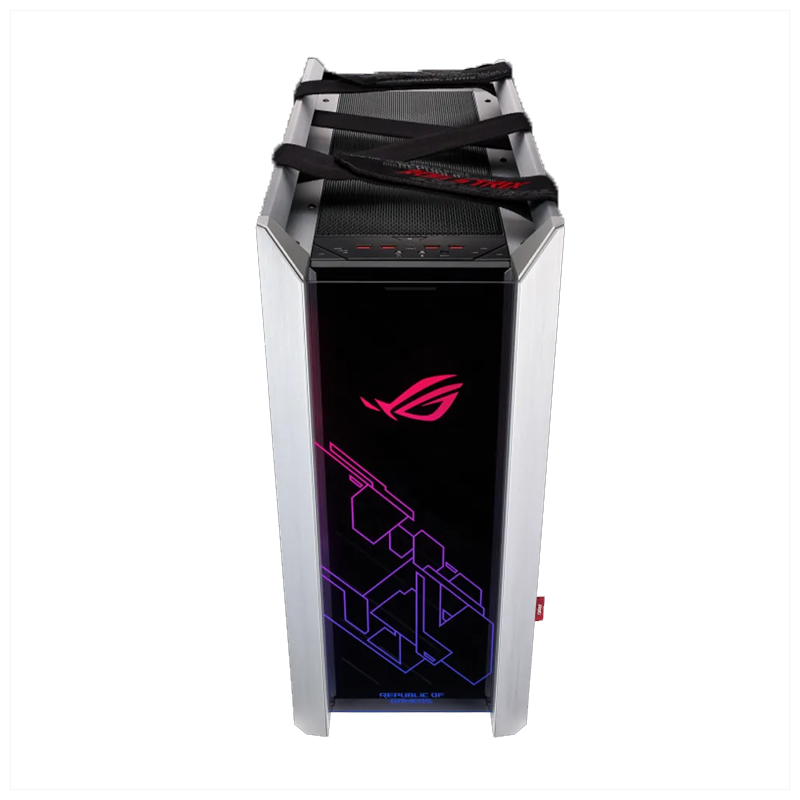

Strong, Comfortable Carry Handles
It's ergonomic design, easy and safe to transport to LAN parties or gaming events with the integrated fabric carry handles.
Rigorously tested to support up to 110 pounds (50kg).
PSU Shroud With Cut-Out Design
Unique ROG Cybertext Pattern & two-pieces design of PSU shroud allows for removable first shroud for additional clearance to mount thicker radiator.
The special front cut-out to showcase with ROG Strix 850W White Edition or other OLED integrated power supplies.
| Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX |
| External Drive Bays | None |
| Internal Drive Bays | 2 x 2.5/3.5″ and 4 x 2.5″ |
| Expansion Slots | 8 x Full Height + 2 |
| Maximum GPU Length | 17.72″ / 450 mm |
| CPU Cooler Height | 7.48″ / 190 mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 8.66″ / 220 mm |
| PSU Mounting Location | Bottom |
| Fan Mounting (Front) | 3 x 120 mm or 3 x 140 mm |
| Fan Mounting (Rear) | 1 x 120 mm or 1 x 140 mm |
| Fan Mounting (Side) | None |
| Fan Mounting (Top) | 3 x 120 mm or 2 x 140 mm |
| Fan Mounting (Bottom) | None |
| Fans Included (Front) | 3 x 140 mm |
| Fans Included (Rear) | 1 x 140 mm |
| Fans Included (Top) | None |
| Maximum Radiator Size (Front) | 420 mm |
| Maximum Radiator Size (Rear) | 140 mm |
| Maximum Radiator Size (Top) | 360 mm |
| Fan Controller Included | Yes |
| Filter Locations | Bottom, Front, Top |
| I/O | 1 x USB-C (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Media/Memory Card Slot | None |
| Audio I/O | 1 x 3.5 mm Input 1 x 3.5 mm Output |
| Display Outputs | None |
| Windowed Panel | Yes |
| Material | Aluminum, Steel, Tempered Glass |
| Certifications | REACH, RoHS *as per Manufacturer |
| Built-In Lighting | Yes |
| Tool-Less Design | Thumbscrews |
| Cable Management Space | 1.30″ / 33 mm |
| Dimensions (W x H x D) | 9.84 x 23.27 x 22.24″ / 250 x 591 x 565 mm |
| Weight | 39.68 lb / 18 kg |
