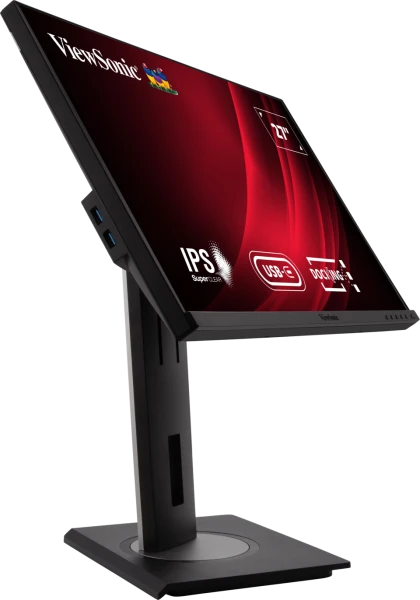

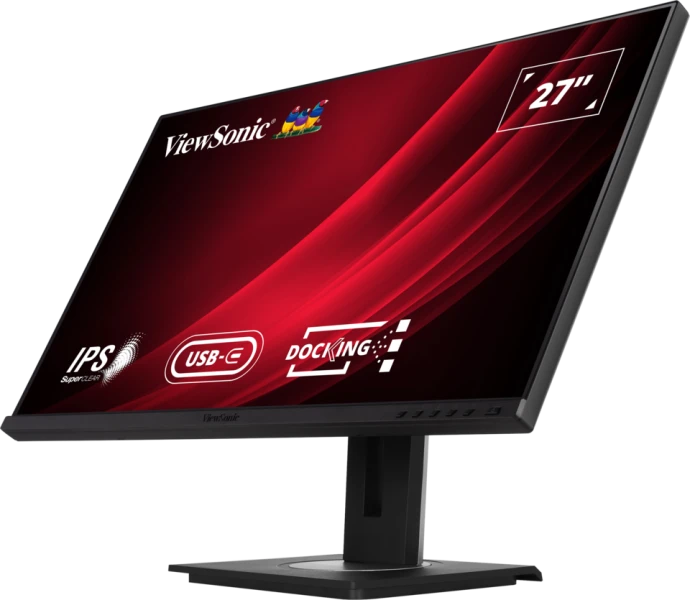

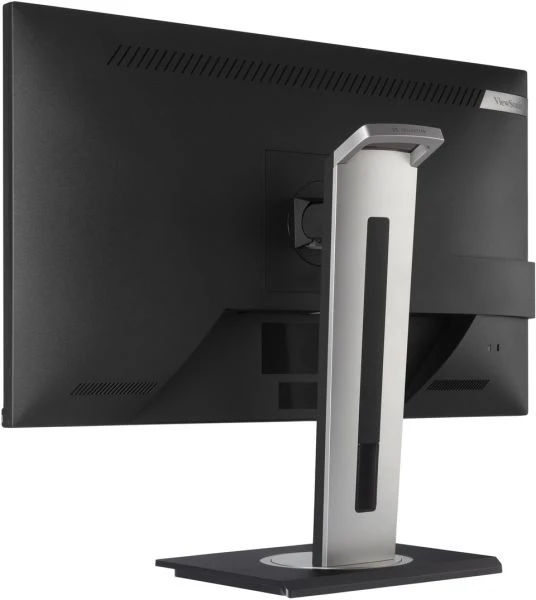

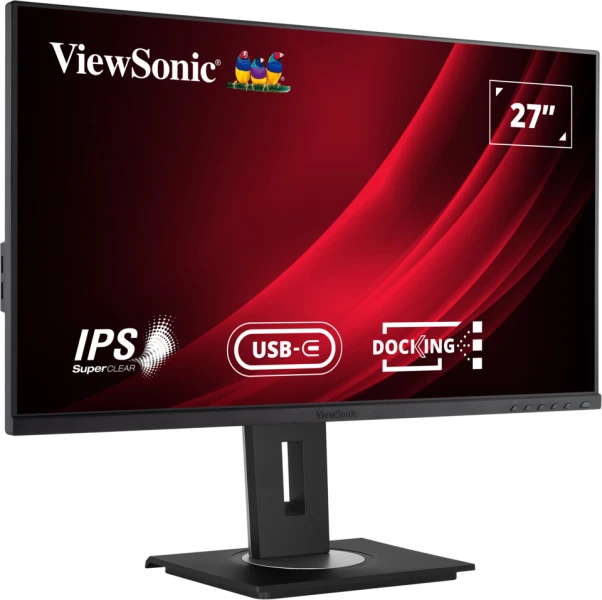

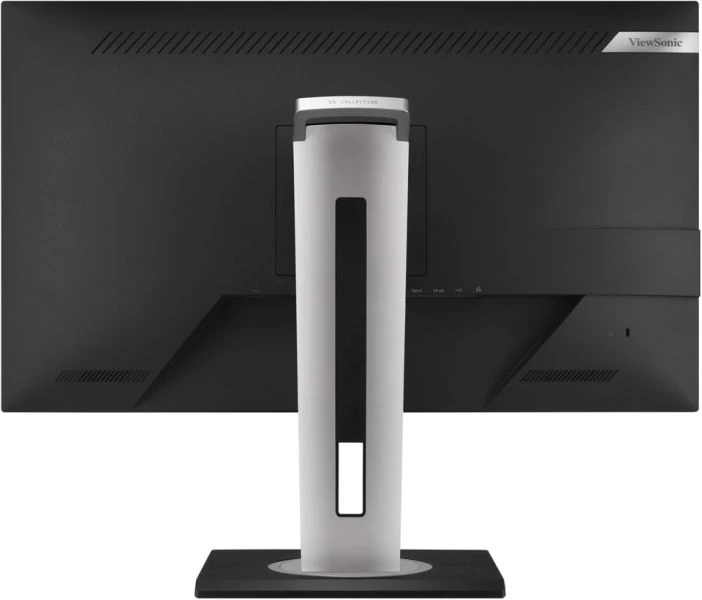

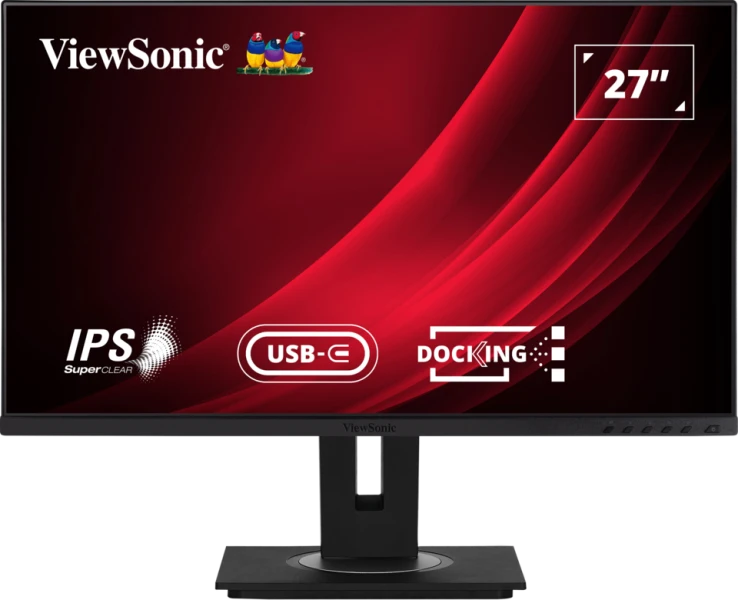

The ViewSonic VG56 docking monitor series will keep the workstation tidy and productive with USB Type-C and Ethernet connectivity that turn your monitor into a hub for charging, data, network, and devices. With a 27” display and 2560 X 1440 resolution that delivers larger and clearer images, the VG2756 QHD monitor expands your productivity. This monitor’s DisplayPort output also makes it convenient to daisy chain monitors, reducing clutter on your desk and simplifying cable management. A range of ergonomic features such as 40-degree tilt, swivel, bi-directional pivot and height adjustment, along with eye-care technology let you stay comfortable at work all day. In addition, the supported vDisplay Manager software for multi-tasking provides efficient on-screen display control. The monitor and quick release stand ship in an eco-friendly, biodegradable package, thus minimizing total cost of ownership. Read more
| Specifications | Descriptions |
|---|---|
| Display | Display Size (in.): 27 Viewable Area (in.): 27 Panel Type: IPS Technology Resolution: 2560 x 1440 Resolution Type: QHD (Quad HD) Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 80M:1 Light Source: LED Brightness: 350 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit true Aspect Ratio: 16:9 Response Time (Typical GTG): 5ms Response Time (GTG w/OD): 5.8ms Viewing Angles: 178º horizontal, 178º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 78% size (Typ) sRGB: 110% size / 100% coverage (Typ) Pixel Size: 0.233 mm (H) x 0.233 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) |
| Compatibility | PC Resolution (max): 2560x1440 Mac® Resolution (max): 2560x1440 PC Operating System: Windows 11 certified; macOS tested Mac® Resolution (min): 2560x1440 |

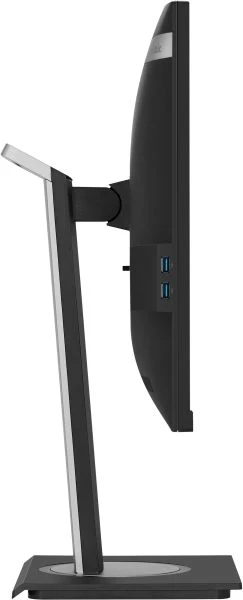

| Connector | USB 3.2 Type A Down Stream: 2 USB 3.2 Type B Up Stream: 1 USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (90W power charger) HDMI 1.4: 1 DisplayPort: 1 DisplayPort Out: 1 Power in: 3-pin Socket (IEC C14 / CEE22) Ethernet LAN (RJ45): 1 |
| Audio | Internal Speakers: 2Watts x2 |
| Power | Eco Mode (Conserve): 16.81W Eco Mode (optimized): 21.12W Consumption (typical): 26.35W Consumption (max): 35.94W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply |
| Additional Hardware | Kensington Lock Slot: 1 Cable Organization: Yes |
| Controls | Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power) On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
| Operating Conditions | Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% |
| Wall Mount | VESA Compatible: 100 x 100 mm |
| Input Signal | Frequency Horizontal: 15 ~ 90KHz Frequency Vertical: 49 ~ 75Hz |
| Video Input | Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C |

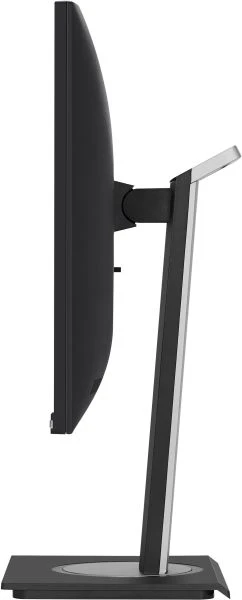

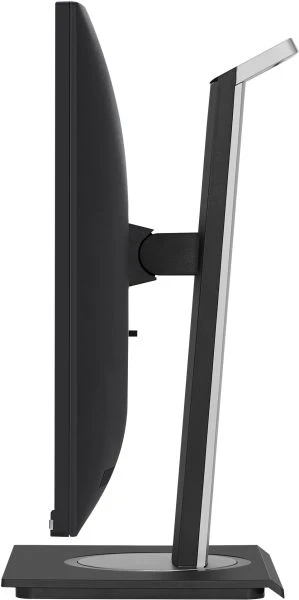

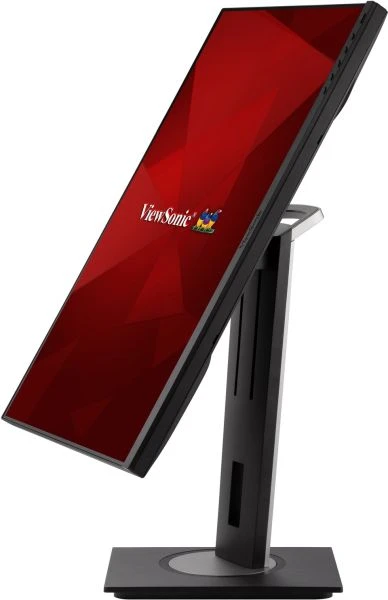

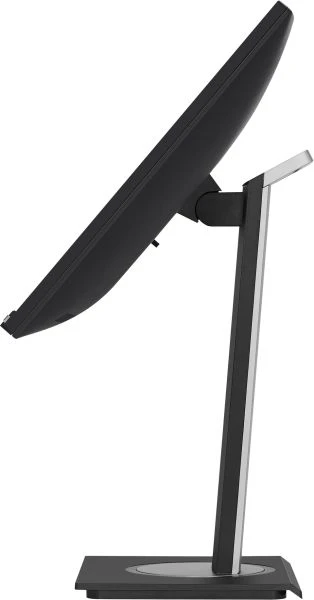

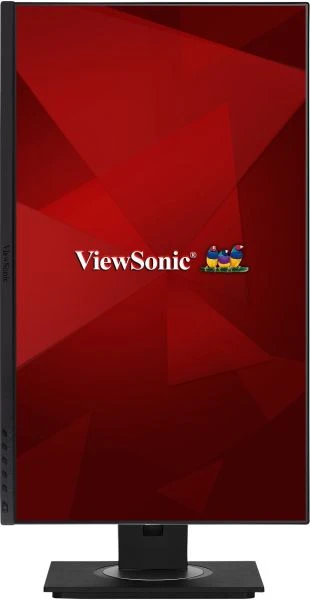

| Ergonomics | Height Adjust (mm): 130 Swivel: 120º Tilt (Forward/Back): -5º / 40º Pivot (Right/Left): 90º / 90º |
| Weight (imperial) | Net (lbs): 15.2 Net Without Stand (lbs): 9.9 Gross (lbs): 22.5 |
| Weight (metric) | Net (kg): 6.9 Net Without Stand (kg): 4.5 Gross (kg): 10.2 |
| Dimensions (imperial) (wxhxd) | Packaging (in.): 27.2 x 16.9 x 8.6 Physical (in.): 24.1 x 15.99~20.99 x 8 Physical Without Stand (in.): 24.1 x 14.2 x 2 |
| Dimensions (metric) (wxhxd) | Packaging (mm): 692 x 430 x 218 Physical (mm): 612 x 406.19~533.24 x 202 Physical Without Stand (mm): 612 x 362 x 52 |
| General | Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM PACKAGE CONTENTS: VG2756-2K x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards, EPEAT |
