- Powered by the latest Intel® 12th & 13th Generation Core™ processors
- DDR5-4800 memory support allows computer to transfer data faster than DDR4
- Support one PCIe Gen4x4 SSD to deliver greater performance and lower latncy
- 4 display located in the rear I/O panel including dual HDMI 2.1
Product Details
Ultra-compact mini PC with 12th and 13th Gen Intel® Core™ processors and Intel® Iris® Xe Graphics*, DDR5 RAM, PCIe® Gen 4 x4 M.2 NVMe® SSD, Intel® 2.5 Gb LAN, WiFi 6E
New Processor Architecture Design
ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel Core CPU featuring a new hybrid processor design. It includes performance-cores (Pcores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible.

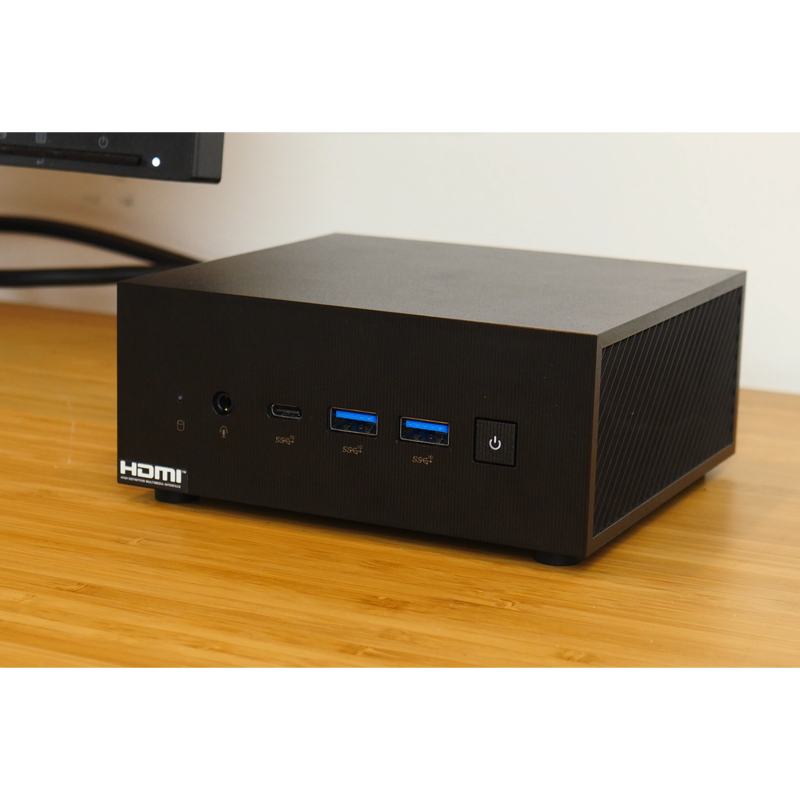

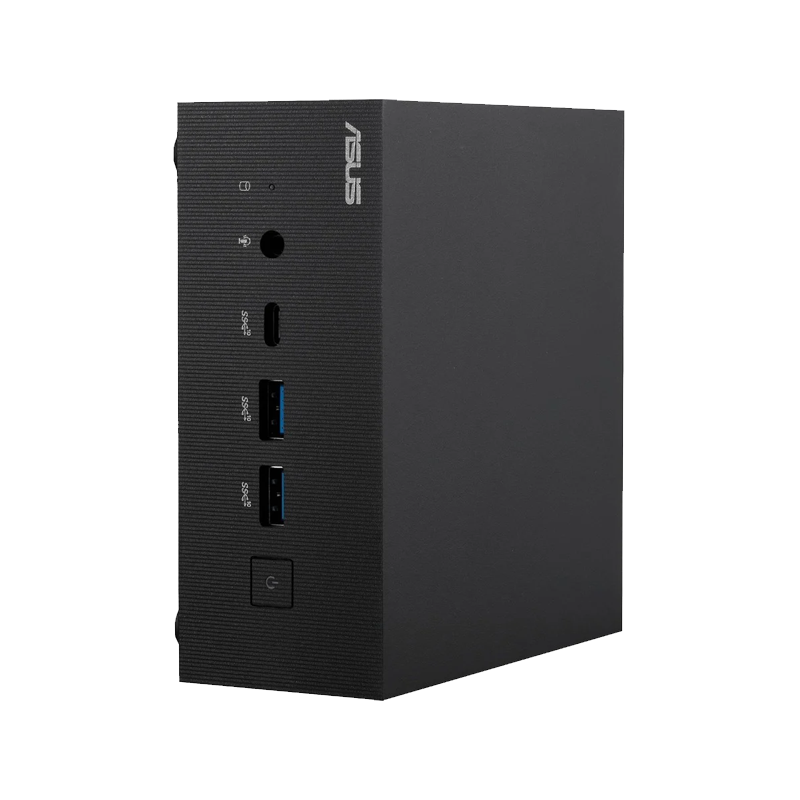

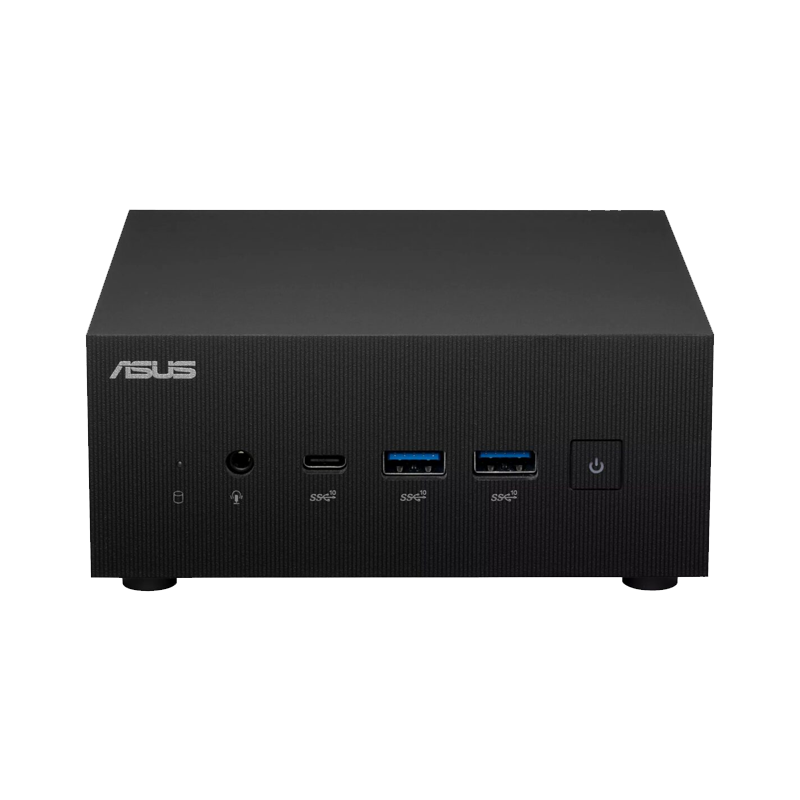

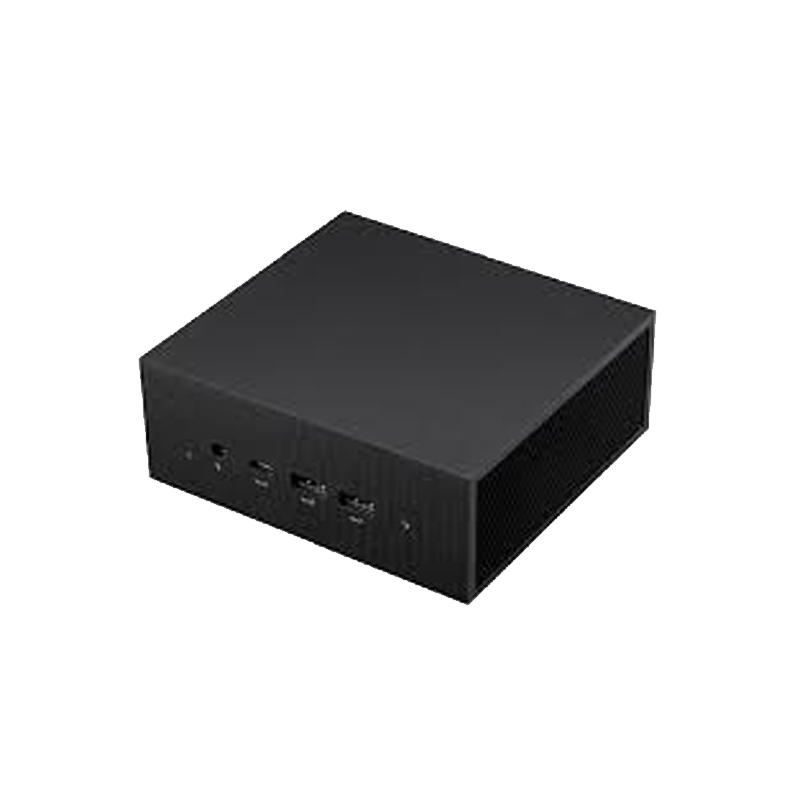

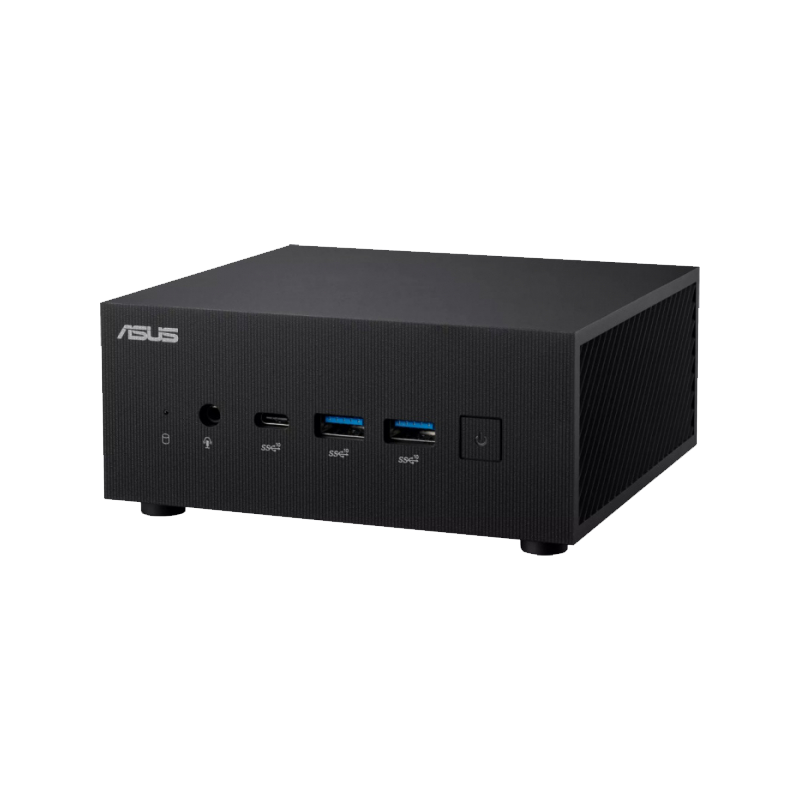

Modern, Space-saving Design
Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office.
Ultra-realistic 8K Visuals
ASUS ExpertCenter PN64 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.
USB Power Delivery Input
ASUS ExpertCenter PN64 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.
4K Resolution & Quad Display Support
ASUS ExpertCenter PN64 can support up to four 4K displays via two HDMI ports, two DisplayPort over USB-C or other userconfigurable ports, without any limitation on the combination used.
Configurable Port
ASUS ExpertCenter PN64 is wellequipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners and receipt printers.
Padlock Ring for Security
The chassis of ASUS ExpertCenter PN64 can be secured with a standard padlock to prevent access to internal components.
• Model: ASUS ExpertCenter PN64 (Barebone)
• CPU: Intel® Core™ i7-12700H Processor, 35W TDP
• Chipset: Integrated
• Graphics: Integrated - Intel® Iris® Xe Graphics (i7/i5 Processor) *Intel® Iris® Xe Graphics requires 128-bit dual channel memory for optimal performance
• Memory (NOT INCLUDED): 2 x DDR5 SO-DIMM, Max. 16GB x 2(12th Gen CPU) * Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List (QVL) for more details.
• Storage (NOT INCLUDED): 1 x M.2 2280 PCIe Gen4x4, supports 256GB~2TB NVMe™ SSD, 1 x 2.5" SATA 6Gb/s, supports 1TB 7200rpm 7mm HDD * 2.5" HDD bay only supports 7mm height. ** Please check the Qualified Vendors List (QVL) for more details.
• Wireless Data Network: Intel® Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card
• Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card
• Intel® Wi-Fi 6 (Gig+) 2x2 + Bluetooth® 5.2 Wireless Card
• *WiFi 7 and WiFi 6E 6GHz regulatory may vary among countries.
• *Bluetooth v5.2 and later version functions to be supported in Windows 11 or later.
• LAN: 10/100/1000/2500 Mbps, 2.5G Intel® LAN
• Front(Side) I/O Ports: 1 x USB 3.2 Gen2 Type-C
• 2 x USB 3.2 Gen2 Type-A
• 1 x Audio Jack
• 1 x Kensington Lock(side)
• Back I/O Ports: 1 x USB 3.2 Gen2 Type-C (with DP1.4 output and PD input), 1 x USB 3.2 Gen2 Type-A, 2 x HDMI 2.1 (Up to 4K@60Hz), 1 x Configurable Port, 1 x 2.5G RJ45 LAN, 1 x Padlock ring, 1 x DC-in
• Configurable Port Options: 1 x HDMI 2.1 (Up to 4K@60Hz), 1 x DisplayPort 1.4
• 1 x COM, 1 x VGA, 1 x 2.5G LAN
• Dimensions (W x D x H): 120 x 130 x 58 mm
• Weight: 0.75 kg(barebone)
• Certificates: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
