- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
DUAL-COLOR 16-PIN CABLE
Our award-winning yellow 16-pin PCIe cable easily shows users if the cable has been plugged in properly.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
FULL BRIDGE DC TO DC
A full bridge DC to DC design achieves higher conversion efficiency, stabler output voltage, and quicker voltage adjustment for different usage scenarios.

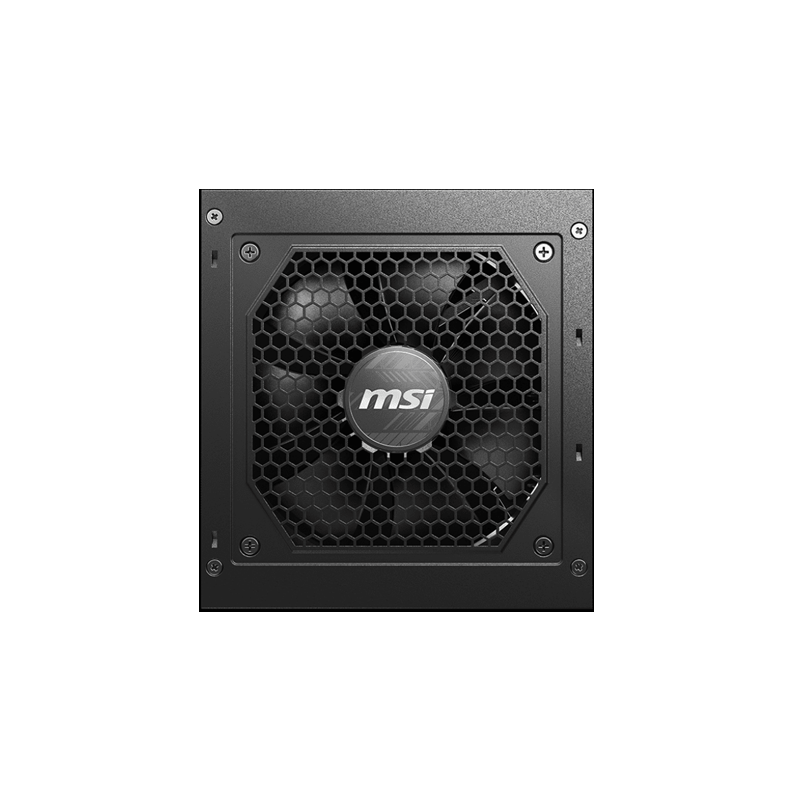

FLUID DYNAMIC BEARING FANS
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
FLAT BLACK CABLES
Organizing cables is often the most bothersome part of building a PC. Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FULL MODULAR DESIGN
The connectors that are required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
MSI MAG A750GL PCIE 5.0, 80 GOLD Fully Modular Gaming PSU, 12VHPWR Cable, ATX 3.0 Compatible, 750W Power Supply Price in Pakistan
Best Seller Ranking | #12 in Power Supplies |
---|
GeneralBrand | MSI |
---|
Model | MAG A850GL PCIE5 |
---|
DetailsColor | Black |
---|
Type | ATX12V |
---|
Maximum Power | 850 W |
---|
Fans | 1 x 120 mm |
---|
PFC | Active |
---|
+12V Rails | Single |
---|
SATA Power Connector | 8 |
---|
Max PSU Length | 150 mm |
---|
Modular | Full Modular |
---|
Energy-Efficient | 80 PLUS GOLD Certified |
---|
Protection | OVP, OCP, OTP, OPP , SCP, UVP |
---|
Input Voltage | 100 – 240 V |
---|
Input Frequency Range | 47 – 63 Hz |
---|
Input Current | 12A |
---|
Output | +3.3V@20A, +5V@20A, +12V@70.5A, -12V@0.3A, +5VSB@2.5A |
---|

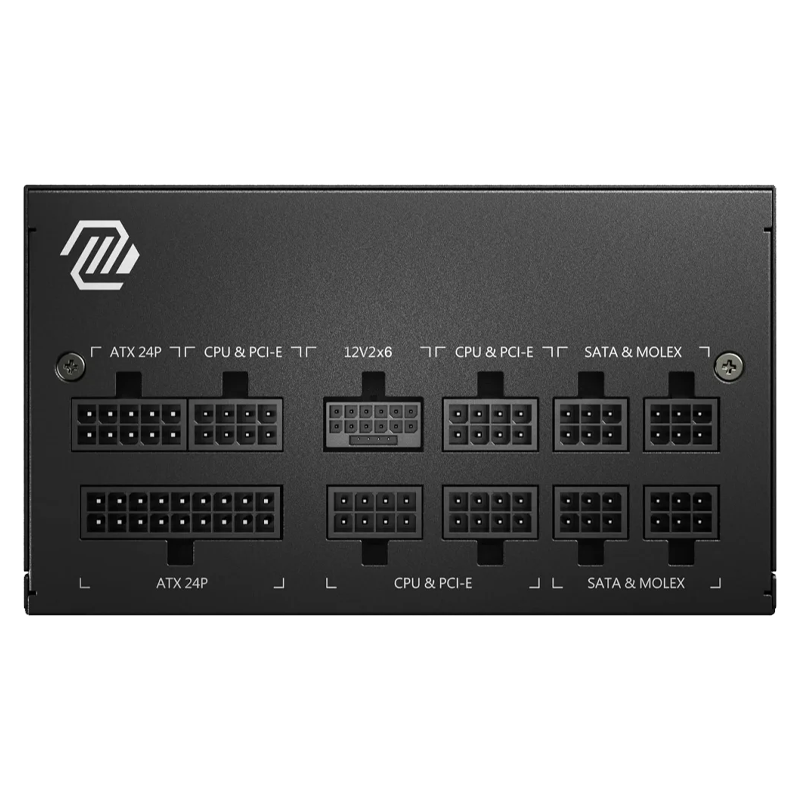

Connectors | 1 x MB (24/20 pins) 2 x CPU (8/4 pins) 4 x PCIe (8/6 pins) 1 x 12VHPWR (PCI-E 5.0) 8 x SATA 4 x Molex 1 x Molex to FDD Adapter |
---|
Dimension & WeightDimensions | 11.81 * 8.66 * 4.92″ |
---|
