Product Details

Cybenetics ETA PLATINUM and LAMBDA A- Certified

XPG CYBERCORE series is certified by the highest Cybenetics quality standards.

All configurations have achieved ETA PLATINUM grade while still maintaining LAMBDA A- rating for noise even with our most compact form factor, reaching A- with 230V for the 1300W version. This is a statement of our commitment to deliver the absolute best performance for all of our PC users.

80 PLUS PLATINUM Efficiency

XPG CYBERCORE’s efficiency achieves 92.91% 115VAC at 50% load (temperature at 25?), delivering exemplary performance even by 80 PLUS PLATINUM standards.

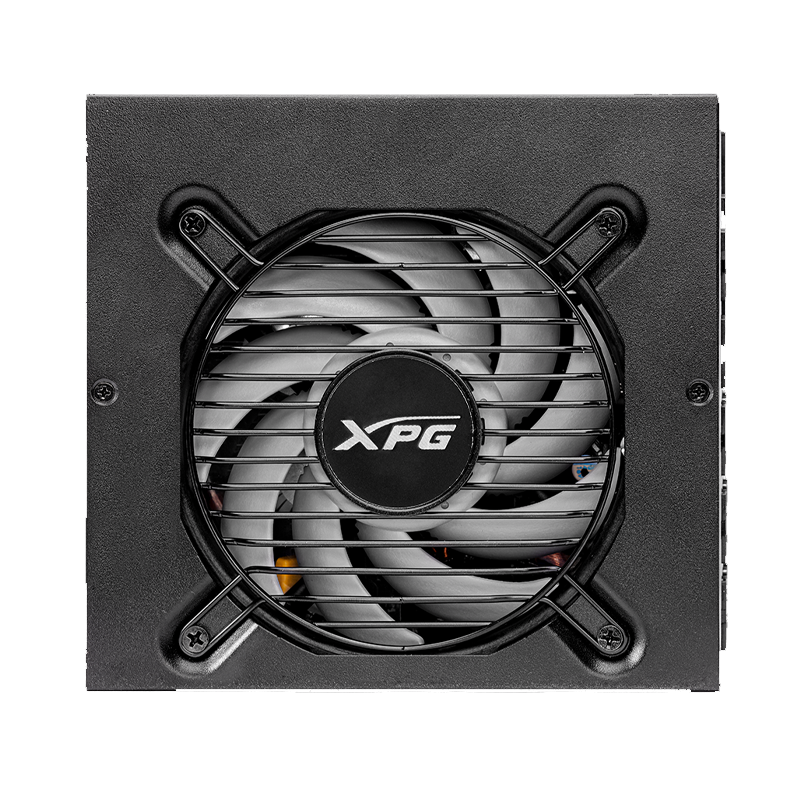

XPG VENTO PRO 120 PWM FAN by Nidec

XPG CYBERCORE is the latest XPG and Nidec collaboration, utilizing our highest tier XPG VENTO PRO 120 PWM Fan for its high cooling efficiency, featuring Dual Bearing and patented technology to maintain an excellent balance between noise and life expectancy (60,000 hours at 60?).

Efficient Fan Curve

XPG CYBERCORE’s fan curve is intelligently designed. The fan begins with a zero RPM low-load mode until around 30% power load before initiating to spin. This design has 2 main benefits: to prolong fan life expectancy, and to minimize fan noise.

All Japanese 105? Capacitors

XPG CYBERCORE PLATINUM Series utilizes all-Japanese high quality 105? capacitors to ensure power delivery is stable, consistent and efficient.

Digital Control Panel in a Compact Form Factor

XPG CYBERCORE PLATINUM PSU’s power delivery efficiency is optimized via Digital Control Panel.

It controls, commands and optimizes power delivery’s efficiency and stability, ensuring the process is stable but also accurate, helping protects other components as well, all within such a compact form factor (LxWxH) 160x150x86mm, making it an extraordinary creation of a PLATINUM-grade power supply by XPG.

DC-to-DC Circuit Design

DC-to-DC Circuit design minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to components’ life expectancy. Ultimately, XPG CYBERCORE can achieve smooth and stable power delivery.

Interleaved PFC

XPG CYBERCORE Interleaved PFC (Power Factor Correction) regulates and stabilizes voltage, and distributes power at its optimal efficiency, leveraging 2 chokes that alternate each other, reducing power loss during conversion.

XPG CYBERCORE’s PFC is Active, meaning it provides more efficient power efficiency, automatically correcting AC input voltage (full range).

Dimensions (L x W x H)

• 160 x 150 x 86mm

Cybenetics Rating

• PLATINUM

80 Plus Rating

• PLATINUM

ATX Version

• ATX 3.0

Protections

• OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP

Certification

• CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM

PFC

• > 0.99

Input Voltage

• 100-240V

Input Current

• (1)1300W：15A
• (2)1000W：13A

Input Frequency

• (1)1300W：50-60Hz
• (2)1000W：50-60Hz

DC Output Voltage

• +5V | +3.3V | +12V | -12V | +5Vsb

Total Output

• (1) 1300W
• (2) 1600W

Power Excursion

• 1000W: 2000W (*up to 200% of the PSU’s rated power for 100μs)
• 1300W: 2600W (*up to 200% of the PSU’s rated power for 100μs)

Operating Temperature

• 50°C

Fan Size

• 120mm

Fan Bearing

• Double Ball Bearing

Fan Speed

• 2,150 RPM

MTBF

• 125,000 hours @ 25°C

ATX 24 Pin Connector

• 1300W：1
• 1000W：1

EPS 8 Pin Connector

• 1300W：2
• 1000W：2

PCI-E 6+2 Pin Connector

• 1300W：10
• 1000W：6

Molex 4 Pin Connector

• 1300W：8
• 1000W：4

12VHPWR (12 + 4) Connector (600W)

• 1

SATA Connector

• 1300W：12
• 1000W：8

Floppy 4 Pin Connector

• 1300W：2
• 1000W：1

Weight

• 1000W：
  Product+cables：1.96kg+1.35kg (4.32lb+3.0lb) ±5%
  with Package：4.13kg (9.1lb) ±5%
• 1300W：
  Product+cables：2kg+1.94kg (4.4lb+4.2lb) ±5%
  with Package：4.6kg (10.1lb) ±5%
